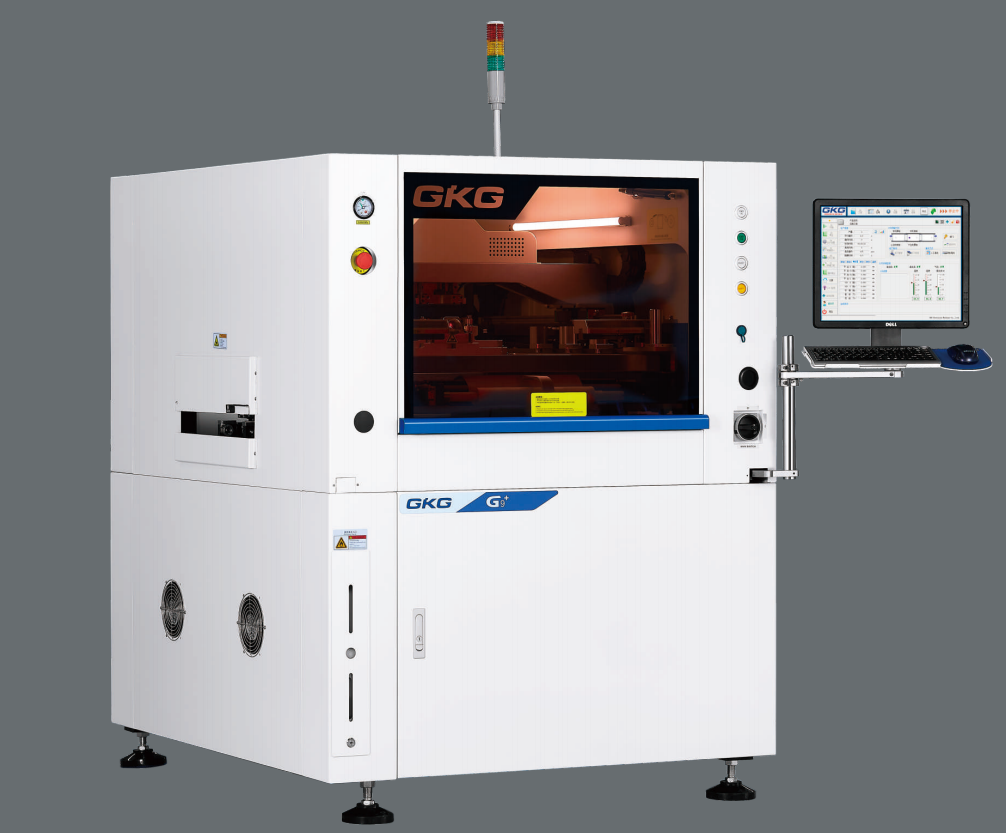

High Precision And High Speed Fully Automatic Solder Paste Printer
The G9+automatic tin paste printing press is a high-end model for SMT high-end application, which can satisfy the printing process requirements of 03015, 0.25 pitch, high precision and high speed.
Technical Parameter/Specifications
| Substrate processing | G9+ |
| Maximum board size | 450*340mm |
| Minimum board size | 50*50mm |
| Board thickness | 0.4~6mm |
| Maximum board weight | 3Kg |
| Board edge clearance | 2.5mm |
| Board height | 15mm |
| Transport height | 900±40mm |
| Transport Speed |
1500mm/s(Max) Program Control |
| Transport direction | One stage |
| Board clamp | Patented over the top clamping |
| Side clamping | |
| Adsorption function | |
| Support System | Magnetic Pin |
| Support Block | |
| Manual up-down table |
| Machine Parameter | G9+ |
| Power Source | AC:220±10%,50/60HZ,2.5KW |
| Air Pressure | 4~6Kgf/cm² |
| Air Consumption | About 5L/min |
| Operating Temperature | -20℃~+45℃ |
| Operating Humidity | 30%~60% |
| Machine Dimension(Without Tower light) | 1530(H)mm |
| Machine Length | 1172(L)mm |
| Machine Width | 1385(W)mm |
| Machine Weight Approx: | Approx:1000Kg |

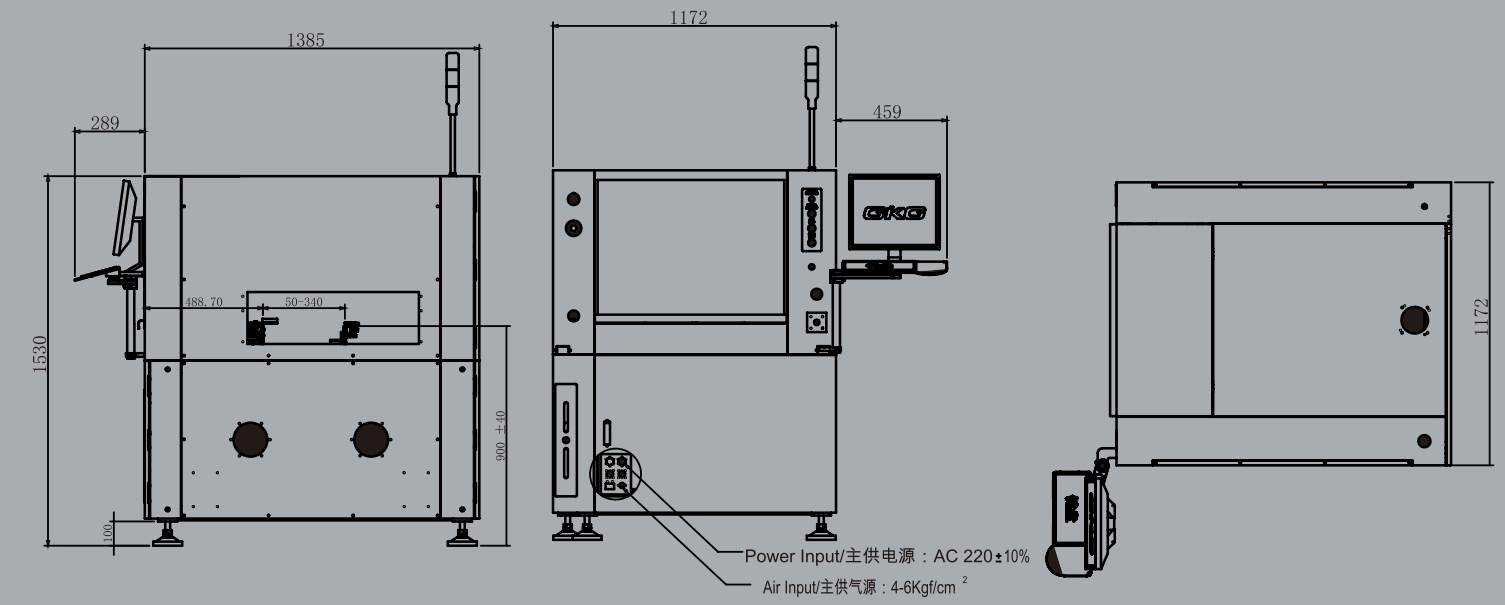

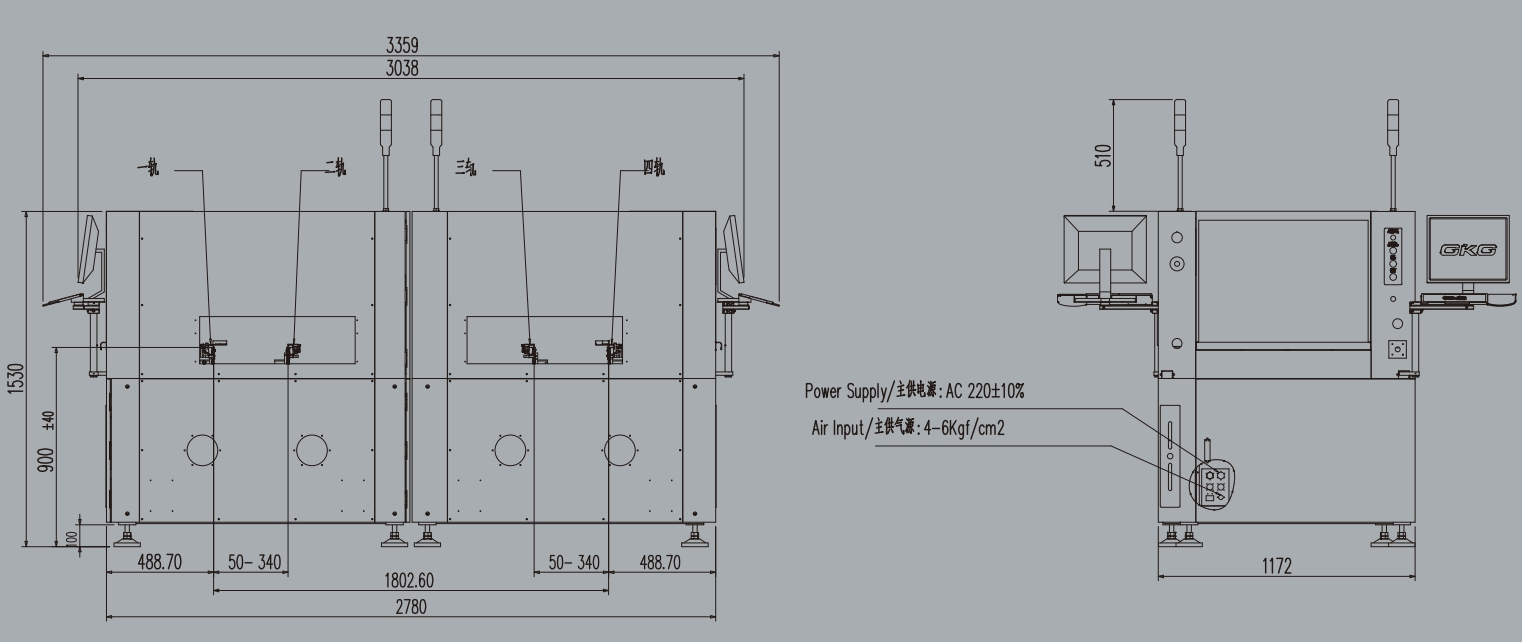

Dimensional Appearance

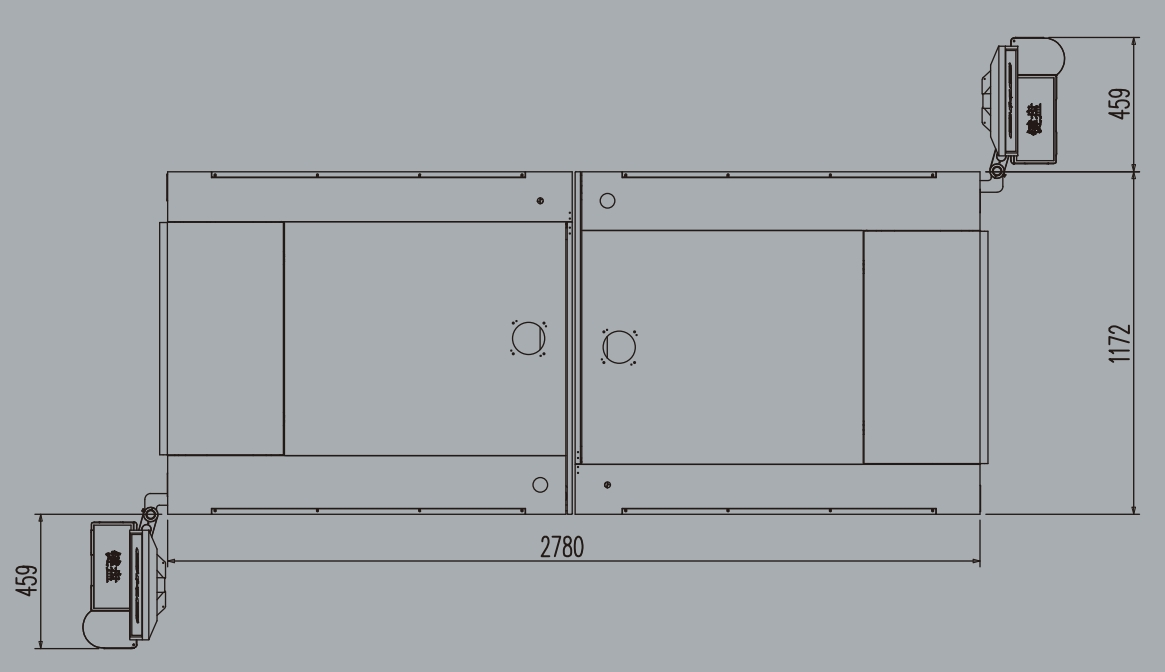

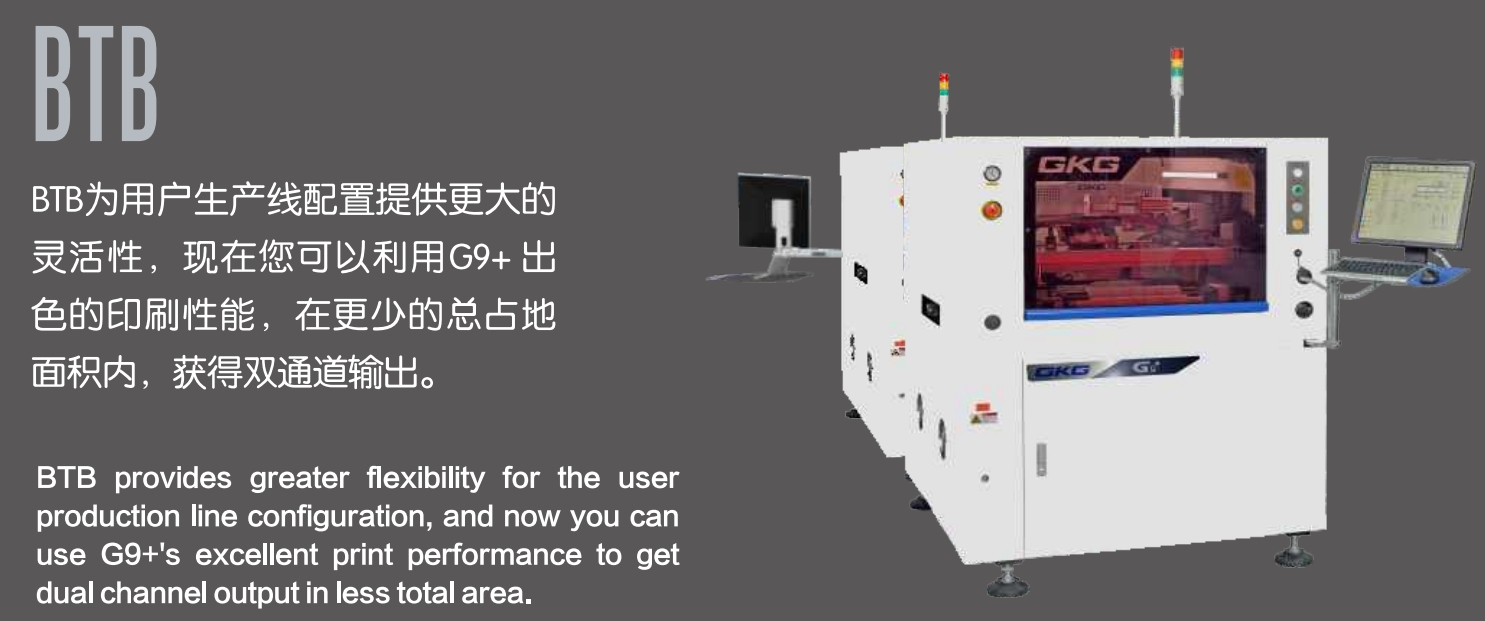

BTB Dimensional Appearance
Performance

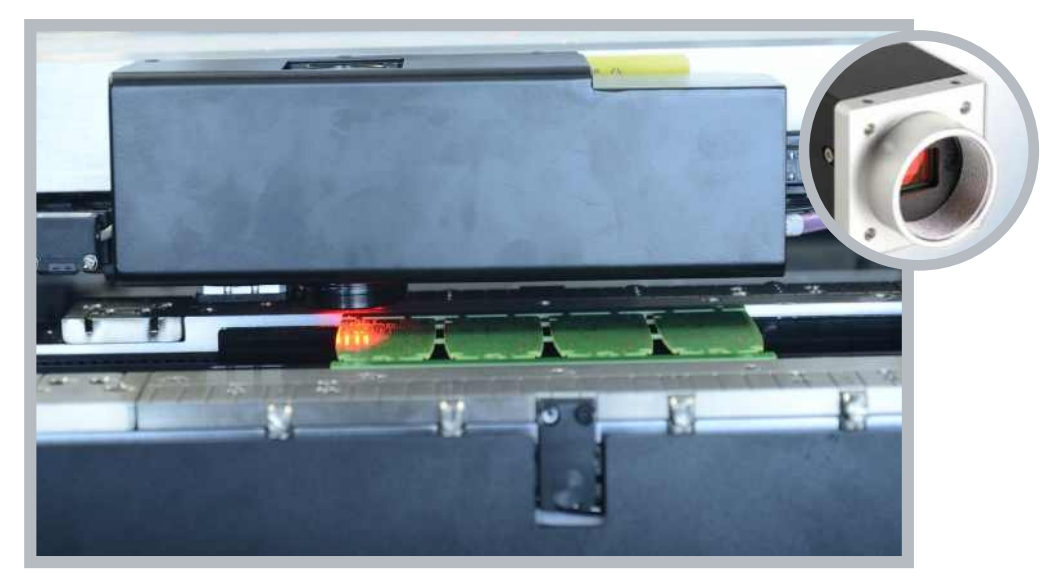

CCD digita| camera system
Total new optical path system, uniform circular light and high brightness of coaxial light source. With both light source system, brightness can adjust to an infinite loop, allowing different mark point can be easily recognize (including uneven mark point) such as tin plating, copper plating, silver plating, hot air soldering, FPC and various types of differentPCB color.

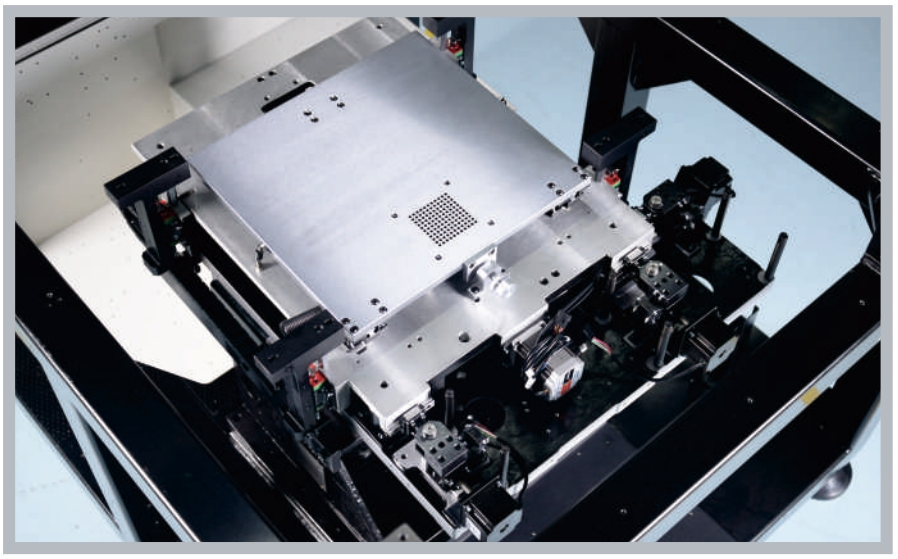

Highly precise PCBthickness adjustmenttable
Extremely reliable structure with stable XY movement. Manual adjustment makes it a breeze to accommodate different PCB thickness.

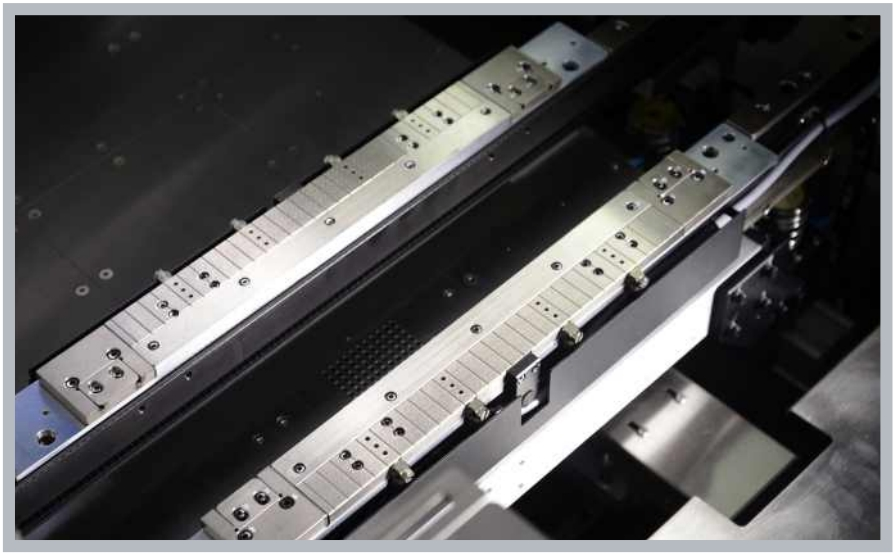

Guide Rail positioning System
New pattern patented guide rail can detachable, programmable flexible side clamp, specific to FPC, PCBwarpage, perform a unique camping plate device. Through software programming can automatically stretch out and draw back unaffected PCB thickness.

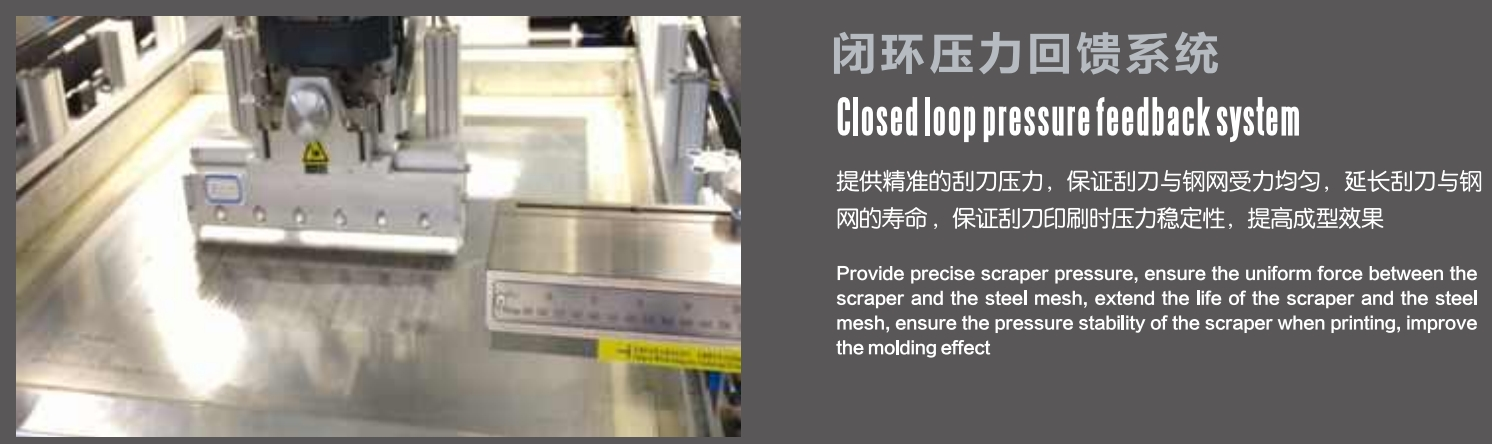

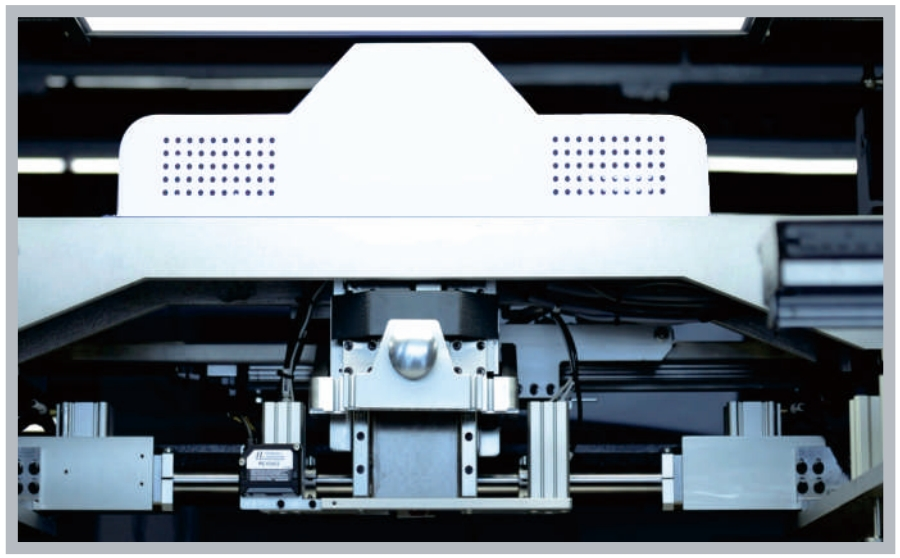

Innovative squeegee structure design
Adopt a comprehensive squeegee system which enhances stability and shelf-life.

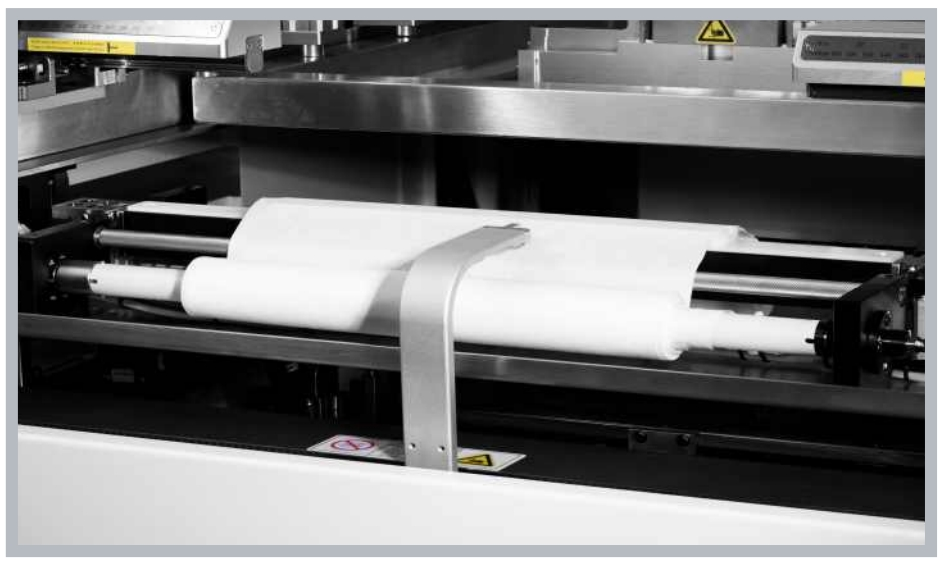

High speed stencil cleaning
Downward dispensing cleaning structure successfully prevents clogged opening (which is always the root cause for ineffective cleaning) from taking place. The length of solvent dispensed can also be easily amended with software control.

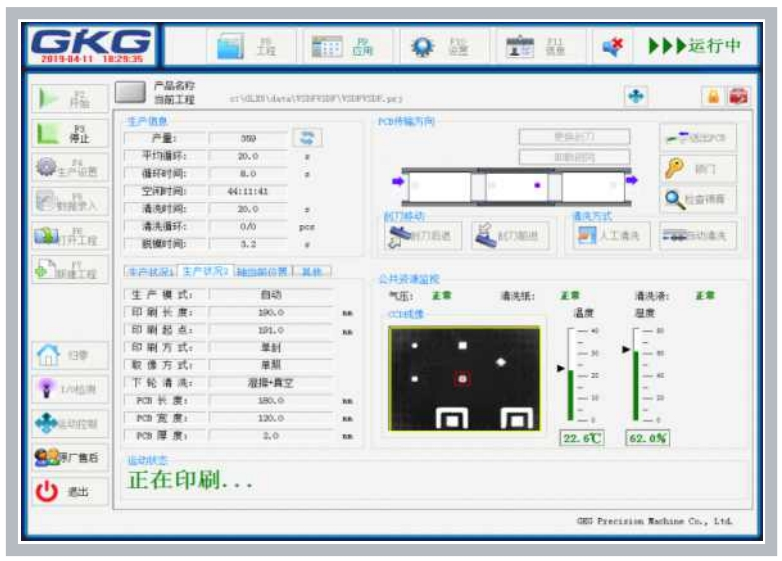

New multi-function interface

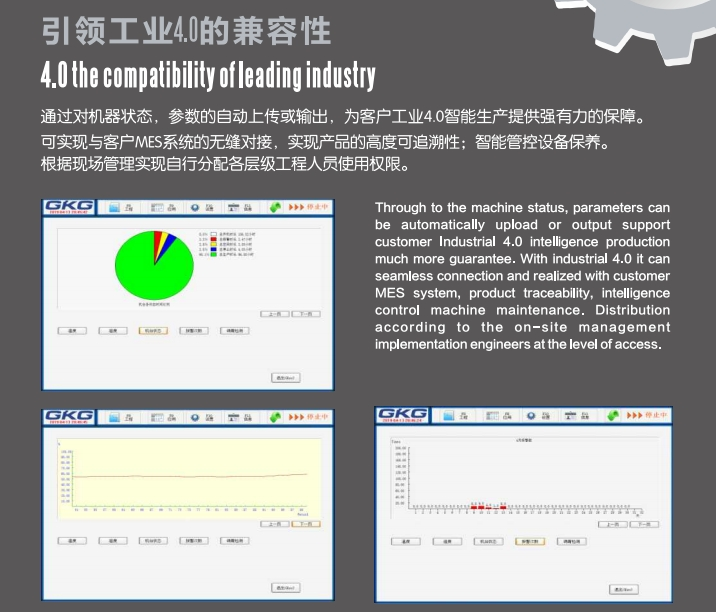

Option 4.0
