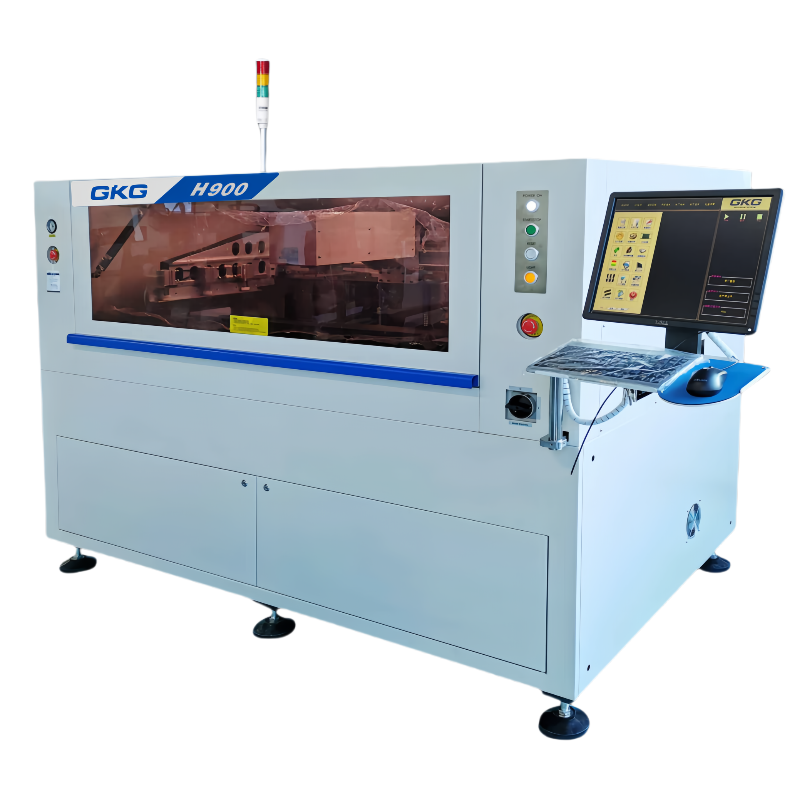

Fully Automatic Solder Paste Printer
Specifications
Machine Performance
Repeat Position Accuracy
±0.015mm
Print Accuracy
±0.03mm
Based on the third party test system(CTQ)Verify the actua| solder paste printing position repeat precision
Cycle time
＜15sec
Machine parameter
Power Source
AC:220 ±10%,50/60Hz 3KW
Air Pressure
4~6Kgf/cm²
Air Consumption
About 5L/min
Operating Temperature
-20℃~+45℃
Working environment humidity
30%~60%
Machine dimension(without Tower light)
1509(H) mm
Machine Length
1970(L) mm
Machine Width
1210(W) mm
Machine Weight Approx
Approx: 1500Kg
Substrate processing
Maximum board size
900*350mm
Minimum board size
80*50mm
Board thickness
0.8~6mm
Maximum board weight
10Kg
Board edge clearance
3.5mm
Board height
15mm
Transport height
900±40mm
Transport speed
1500mm/s(Max)
Transport direction
One stage

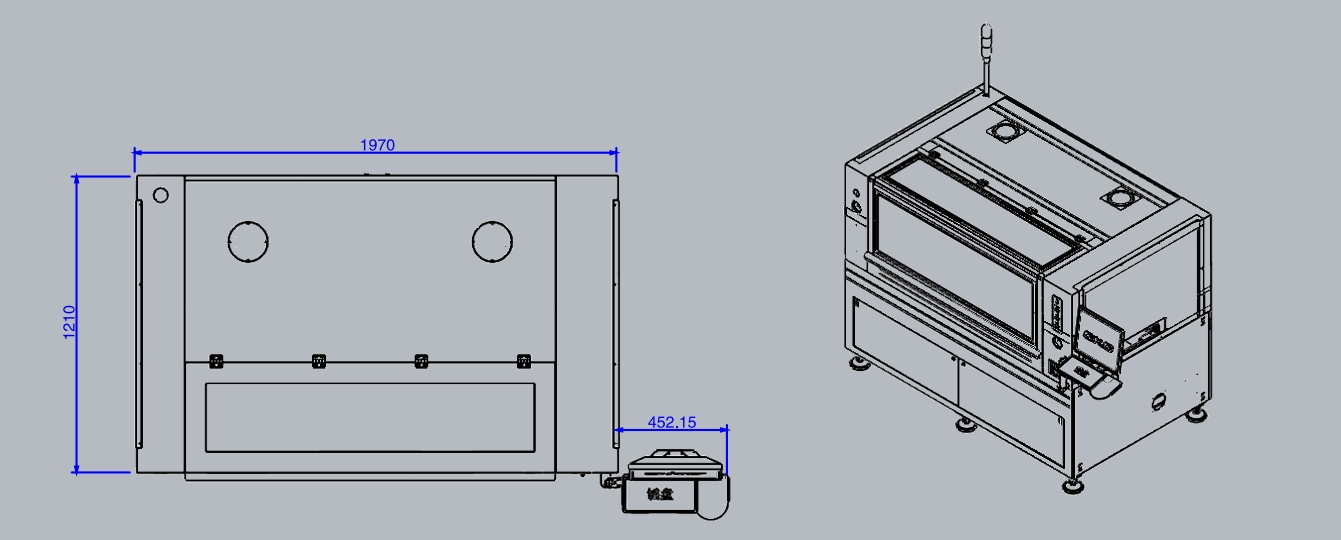

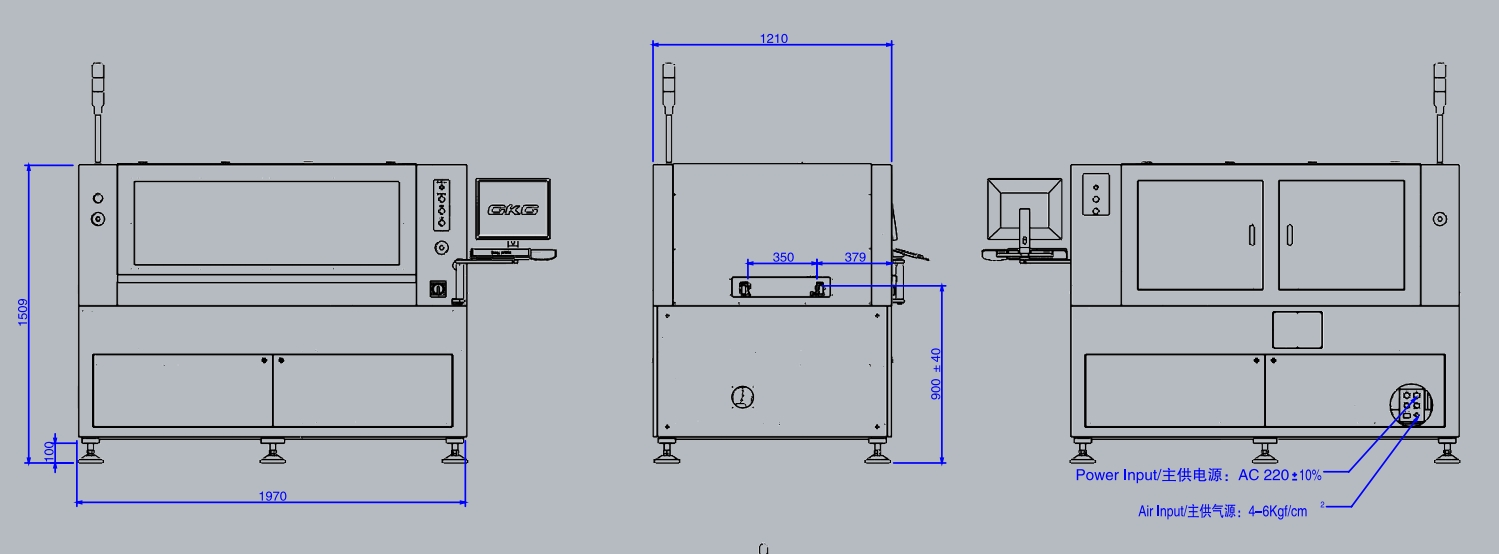

1.Equipment Dimension Diagram
Equipment Size:1970*1210*1509mm
Image and optical system
Using uniform ring light and high brightness coaxial light, with promise brightness adjustment function, then all types of Mark points can be well recognized (Including the rugged Mark points), applicable for tin plating, coppering, gold plating, tin spraying, FPC and other typesPCB with of different colors. With GKG patent mathematical model, able to ensure high accuracy
Electric Control System
Safe and tidy distribution of electric circuit and gas circuit Electric circuit and gas path are positioned vertically at the two sides and the back of machine, which is easy to check and repair.

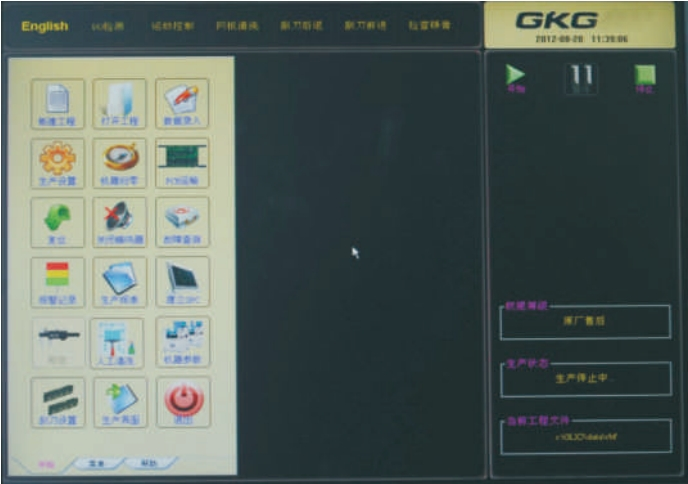

Chinese/English Operating Interface
The machine adopts windowsXP/win7 operating interface with GKG user friendly software.Chinese/English selectable, Menu/Operating Journal/Breakdown Record/Breakdown Diagnosis/Error Analysis/Light Alarm etc

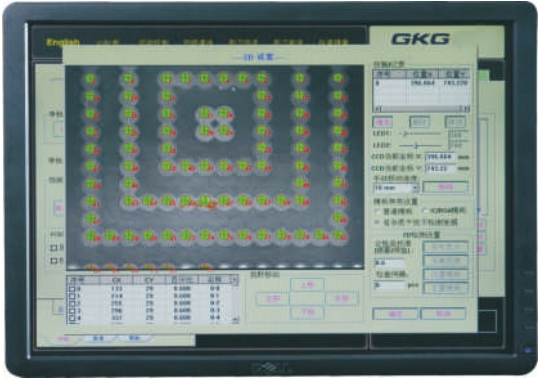

2D Solder Paste Print Quality Inspection and Analysis System
The 2D system immediately detects solder paste deposition defects such as deviation ,lack paste, miss paste ,paste joint etc, and guarantees print quality.

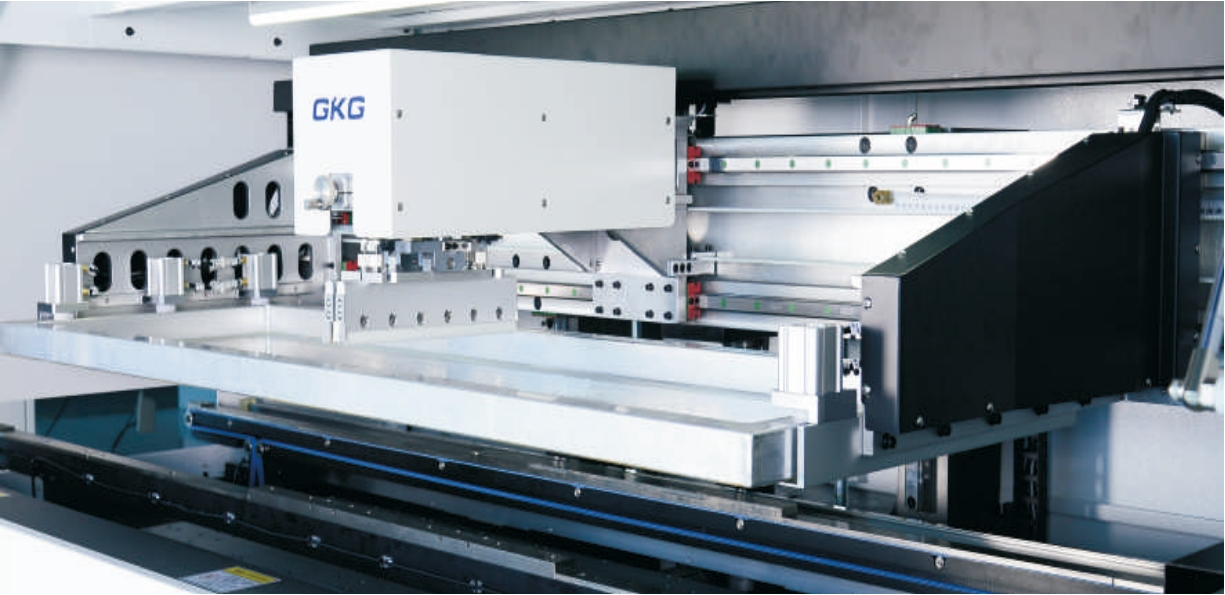

Adjustable Stepping Motor -Programmable &Floating Print-Heads
Unique long platform and track fixed design, to ensure stable support PCB.Short squeegee horizontal printing, pressure stability,save solder paste.
