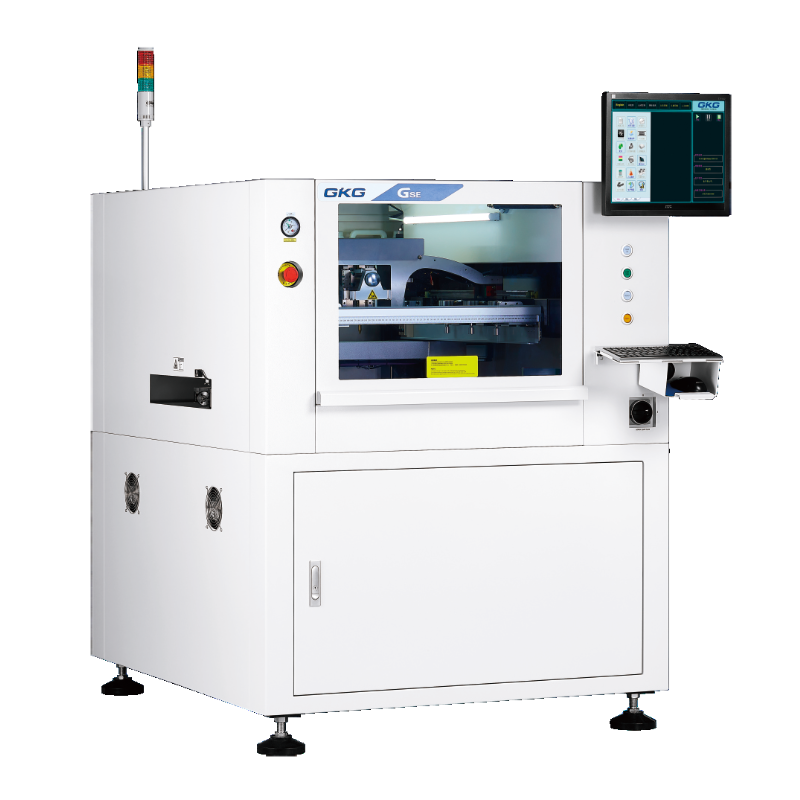

Fully Automatic Solder Paste Printer
Machine Performance
Repeat Position Accuracy
±0.01mm
Print Accuracy
±0.025mm
NCP-CT(Excluding cleaning and printing)
7.5s
HCP-CT(Including cleaning and printing)
19s/pcs
Manufacturing process CT
5min
Transfer line CT
3min
| Machine parameter | |
| Power Source | AC:220 ±10%,50/60Hz 2.2KW |
| Air Pressure | 4~6Kgf/cm² |
| Air Consumption | About 5L/min |
| Operating Temperature | -20℃~+45℃ |
| Working environment humidity | 30%~60% |
| Machine dimension(without Tower light) | 1460(H) mm |
| Machine Length | 1152(L) mm |
| Machine Width | 1362(W) mm |
| Machine Weight Approx | Approx: 900Kg |
| Equipment load bearing requirements | 650Kg/m² |

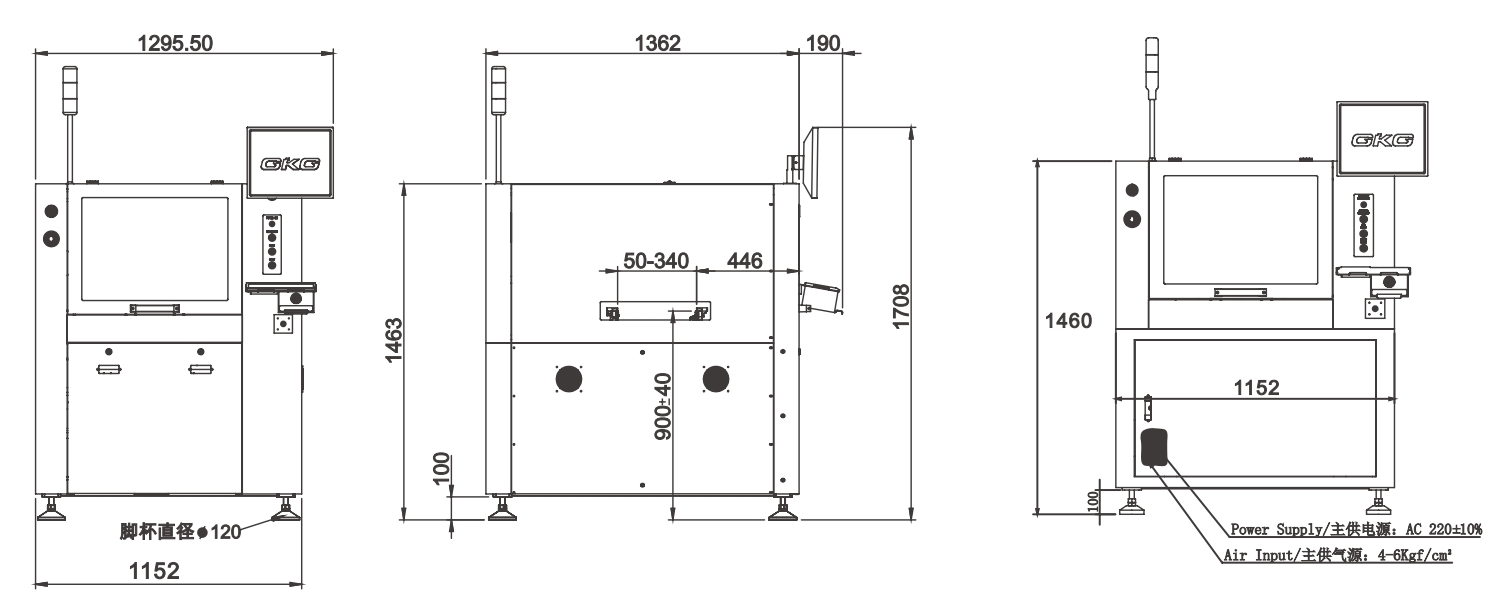

1.Equipment Dimension Diagram
Equipment Size:1152*1362*1460mm

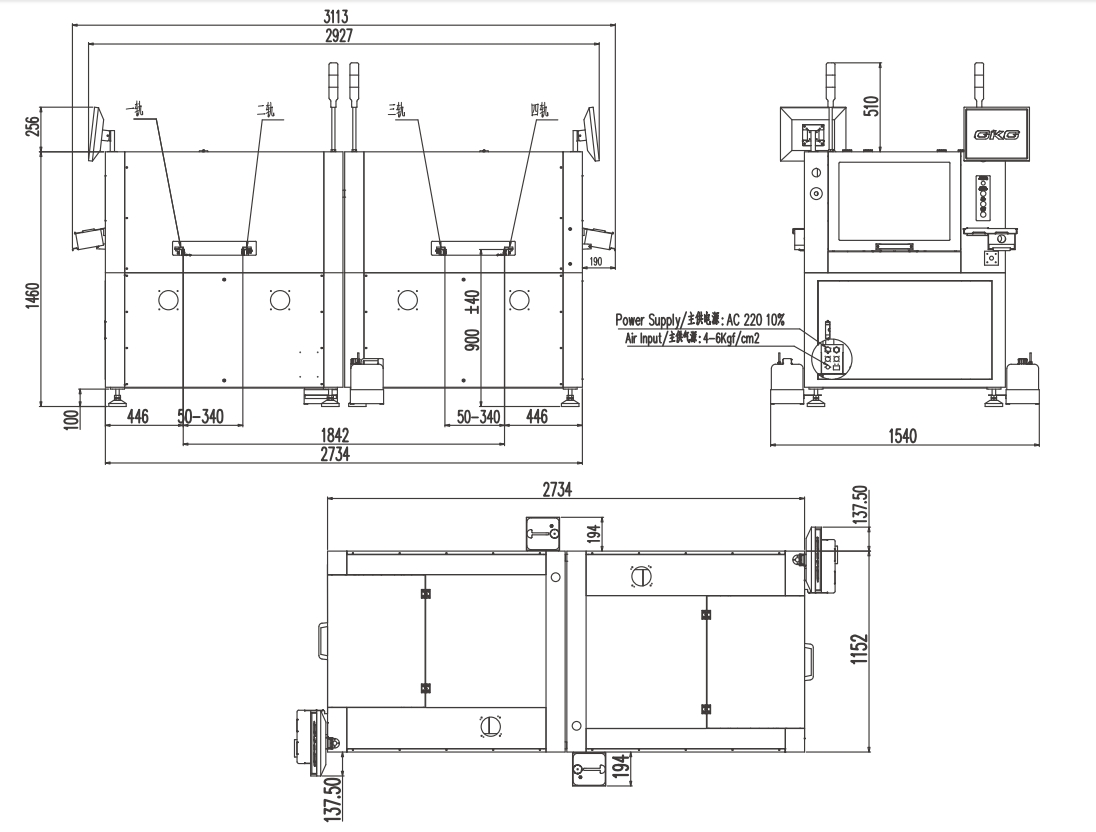

BTB Dimensional appearance diagram
1.Main power supply: AC: 220 ± 10%, 50/60HZ 3KW stable power supply with rated current, plug type: British system.
The electrical interface is shown in the above figure:
2.Main supply gas source: An industrial gas source with a stable pressure of 4.0~6kgf/cm2. Tracheal diameter 6mm/8mm/10mm/12mm
Universal type for the front of the trachea, the rear joint only needs to match the size of the trachea
3.Machine Weight:Approx:900kg
2.Equipment usage environment
1. Workshop temperature: 20C~+45 ℃
2. Workshop humidity: 30-60%
3. Electrostatic protection: ESD grounding and electrostatic protection are required
4. Floor load bearing: If the equipment is not used on the ground floor, please pay attention to the floor load bearing capacity, which must be ≥ 650kg/m²
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
KeywordsSMT Stencil Printer, SMT Solder Paste Printer, SMT Printing Machine, SMT PCB Printer, 600mm Solder Paste Printer, , Solder Paste Printer, 1200mm Solder Paste Printer, Semi-auto Solder Paste Printer, SMT Automatic Stencil Printer, PCB Printing Machine.SMT Line, SMT Prodution Line, SMT Assembly Line, SMT Stencil Printer, Solder Paste Printer, Pick and Place Machine, Chip Mounter, SMT Placement, Reflow Oven, SMT Reflow Soldering Oven, PCB Reflow Oven, SMT Loader, PCB Unloader, SMT Conveyor, Wave Soldering Machine, DIP Wave Soldering Equipment, Selective Wave Soldering Machine, PCBA Coating Machine, PCBA Insertion Machine, PCBA Router Machine.
YUSH Electronic Technology Co.,Ltd was founded in 2004,is located in the world manufacturing city Jiangsu,Guprofessional pcb separator/pcb depanelizer electronic equipment machinery. The company has advanced production and processing equipment and an experienced development and manufacture team,half of them have over 10 years experience in electronic equipment industry.
Begin with 2004 the company leader invested to develop and manufacture the PCB separator and PCB depaneling machine.From then on we pay more attention to product quality,safe to use and product innovation,so far we have produced many high quality, stable performance, high cost-effective products. Improve production yields, increase productivity, and thus enhance the market competitiveness of our customers. Until now we have design different separating PCB types of PCB separator and PCB depaneling machine with manual,motor-driven,pneumatic-driven,mold punching,milling cutter router.Due to the good quality and reasonable price our customers are all over the world.Up to now YuSH have became one of the biggest PCB separator product.
Welcome more people to discuss with us about SMT technologies and solutions, please Contact Us for more information:
Tel: +86 13416743702 (WhatsApp/Skype/WeChat), Email：evaliu@hk-yush.com
