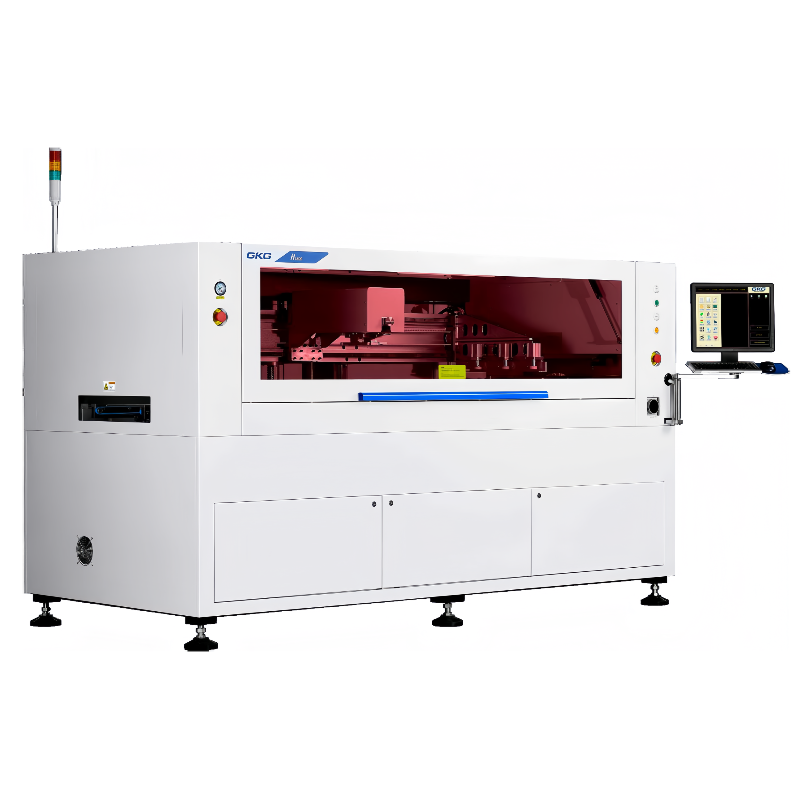

Fully Automatic Solder Paste Printer
Machine Performance
Repeat Position Accuracy
±10μm
Print Accuracy
±23μm
Cycle Time
＜12sec
| Machine parameter | |
| Power Source | AC:220 ±10%,50/60Hz 3KW |
| Air Pressure | 4~6Kgf/cm² |
| Machine Weight Approx | Approx: 1500Kg |
| Machine Dimensions | 2570(L)*1210(W)*1509(H)mm |

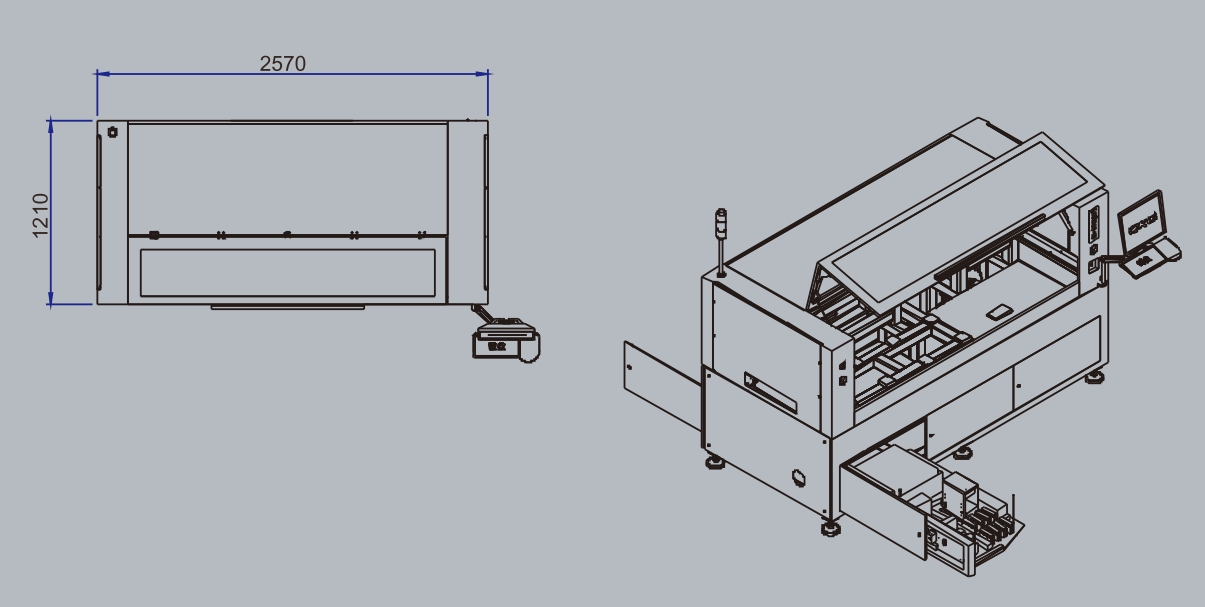

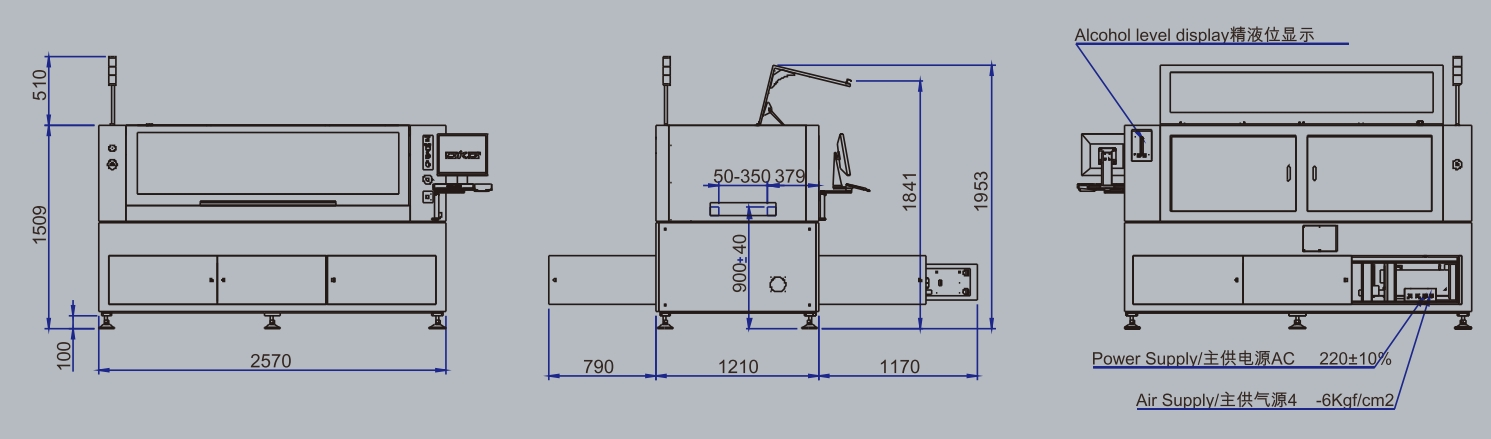

1.Equipment Dimension Diagram
Equipment Size:2570*1210*1509mm

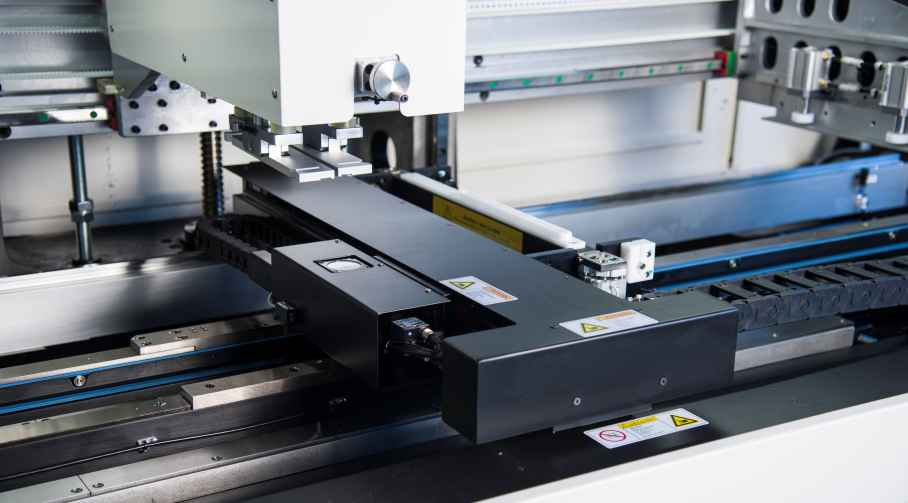

Image and optical system
Using uniform ring light and high brightness coaxial light, with promise brightness adjustment function, then all types of Mark points can be well recognized (Including the rugged Mark points),applicable for tin plating,coppering, gold plating, tin spraying, FPC and other types PCB with of different colors. With GKG patent mathematical model, able to ensure high accuracy

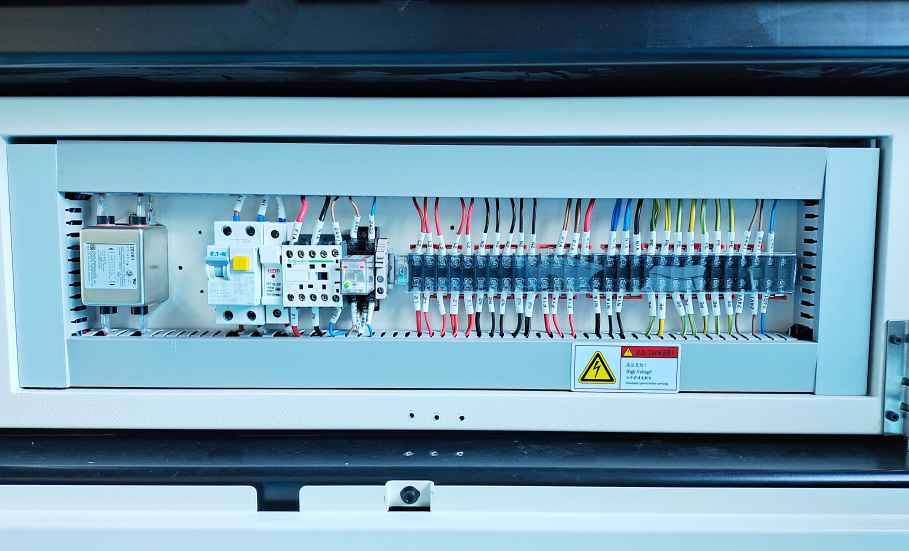

Electric Control System
Safe and tidy distribution of electric circuit and gas circuit Electric circuit and gas path are positioned vertically at the two sides and the back of machine, which is easy to check and repair.

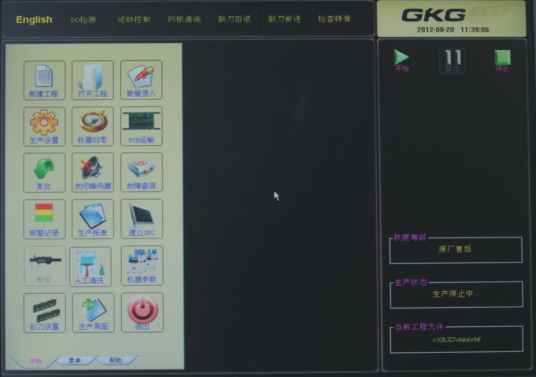

Chinese/English Operating Interface
The machine adopts windows XP/win7 operating interface with GKG user friendly software. Chinese/English selectable, Menu/Operating Journal/Breakdown Record/Breakdown Diagnosis/Error Analysis/Light Alarm etc

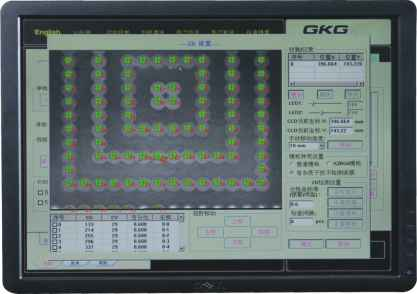

2D Solder Paste Print Quality Inspection and Analysis System
The 2D system immediately detects solder paste deposition defects such as deviation ,lack paste, miss paste ,paste joint etc, and guarantees print quality.

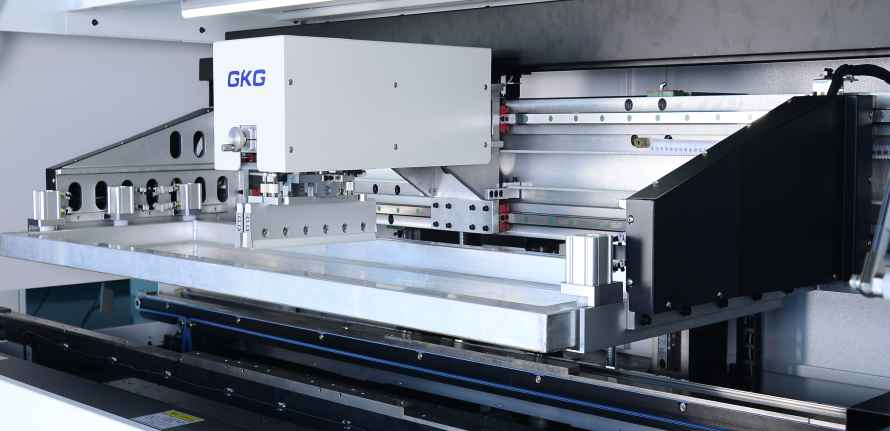

Adjustable Stepping Motor-Programmable &Floating Print-Heads
Unique long platform and track fixed design, to ensure stable support PCB.Short squeegee horizontal printing, pressure stability,save solder paste.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
