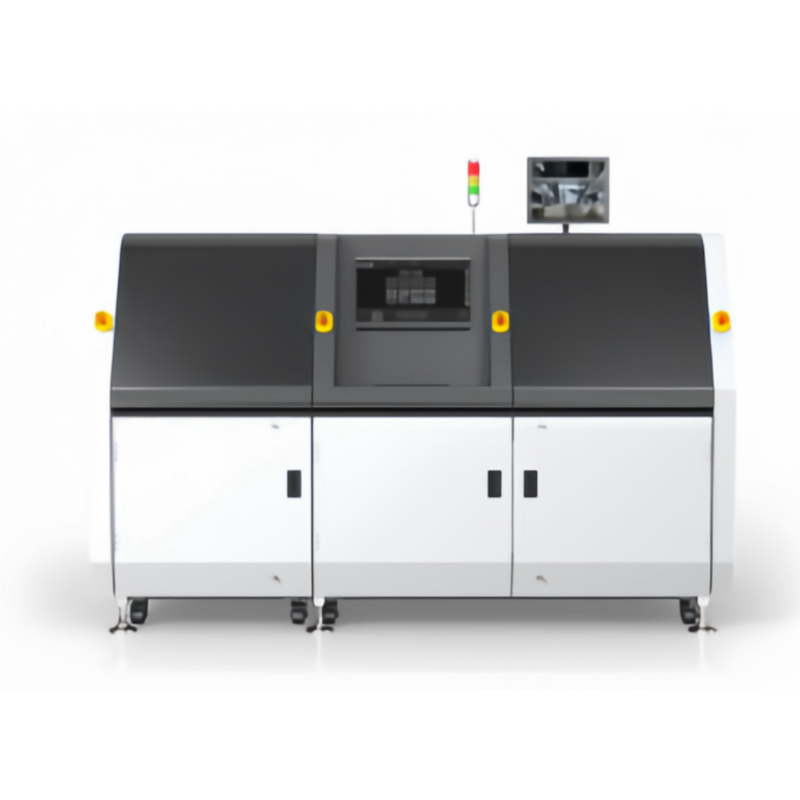

Selective Wave Soldering Machine SMART Series
Features:
The maximum width of the PCB can reach 610m
Spray + preheating + welding module, complete integrated design
Dual tin furnace design and support independent lifting
Offline programming /Gerber file import
Dual tin furnace design and support independent lifting
The welding of dual panel components is fully automated
The crest nozzle movement speed is adjustable
The welding process is visible to CCD
Operation system
| 型号 Model | YSL-450 | YSL-610 |
| Dimension(LXWXH) | 2600X1800x1650mm(1-2pot) | 3350X1950X1650mm |
| PCB Width | 60-450mm | 60-610mm |
| PCB Length | 120-500mm | 120-700mm |
| PCB Top Space | Max:120mm | |
| PCB Bottom Space | Max:50mm | |
| PCB Edge Size | 4mm | |
| Conveyor Height | 900±20 | |
| Conveying Speed | 0.2-10m/min | |
| PCB Weight | 5-8kg | |
| Flux Capacity | 2L | |
| The Size of Flux Nozzle Tube | 130μm | |
| Flux Width | 2-8mm | |
| Bottom movable Infrared Heater | Max:14KW | Max:18KW |
| Temperature Range | Room Temperature-250℃ | |
| Top Air Heater | Max:6KW | Max:8KW |
|
Min Diameter of Solder Nozzle |
Ф2.5/4 | |
| Wave Height | 3-5mm | |
| Solder Pot Capacity | 8KG(Mechanical pump)/13KG(Electromagnetic pump) | |
| Soldering Temperature | Max:350℃ | |
| Heating Time | 40min(Mechanical pump 300℃)/ 75min(Electromagnetic pump 300℃) | |
| Pot Heating Power | 1KW Mechanical pump/ 2KW Electromagnetic pump | |
| Location Speed | X/Y:2-200mm/s | |
| Temp.Control Accuraey | ±2℃ | |
| Soldering Accuracy | ±0.15mm |
| PC Operating System | Windows 10 |
| rocess Visualization | CCD Visual |
| Air Supply | Nitrogen /Air N2/O2 |
| Required Pressure | 0.4-0.8Mpa |
| N2 Consumption | Each consumes about 1.5-2 m3/h |
| N2 Concentration | ≥99.999% |
| Power Supply | AC 380V 3中5W 50/60Hz |
| Consumption | 35KW |
| Air Duct Diameter | Ф200mm |
| Exhaust Air Rate | 360~900 m²/h |
